EB41

Sensibly equivalent to:
CV3881
See also:
The 6H6 Diode Family

Extras ▼

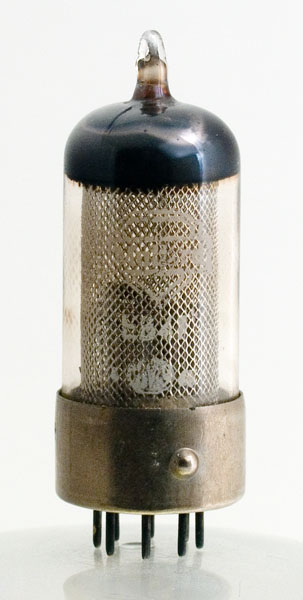

The EB41 is a double diode from Mullard. The special feature of this double diode is the very small inter electrode capacitance. It is possible that this valve was designed for special applications and not as a miniature replacement for the ubiquitous 6H6 family.
The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 53 mm tall.
References: Datasheet, 3002 & 1040. Type EB41 was first introduced in 1948.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
-
k(2)
a(2)
s
a(1)
k(1)
h



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
9.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 03, 2013.
