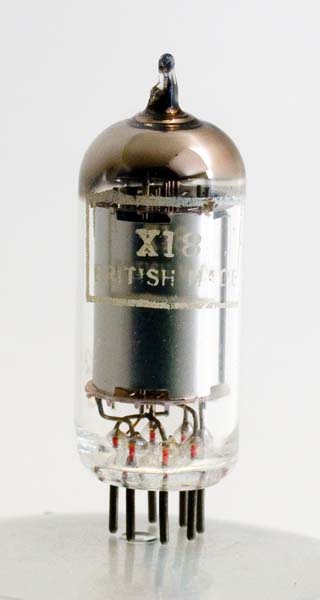

The X18 is a battery heptode frequency changer or mixer. It was designed for AM broadcast radio reception on the short, medium and long wave bands.
The oscillator feed needs to 15 volts pk-pk.
The thin glass tube envelope is 20 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
References: Data-sheet. Type X18 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
f(-)
a
g2
g1
g4
g3
f(+),g5



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
1.4
0.05
90
67.5
0.0
1.15
2.85
0.6M
0.32
Thanks to Frank Philipse for supplying the above PDF datasheet.
