CV136Sensibly equivalent¶ to:
|
|
|

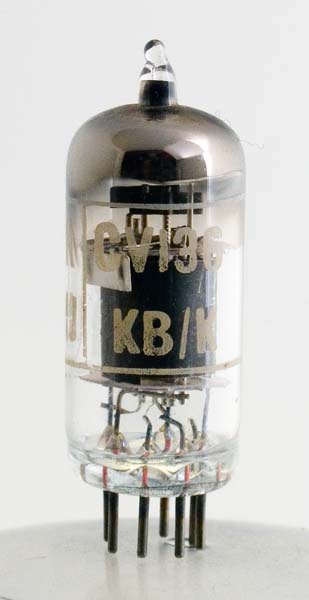

The CV136 is an audio output pentode valve for radio receiver use, commercially this was the 6AM5. In single ended configuration it will produce 1.4 Watts, enough for a receiver.The CV specification demands full output at 100 MHz and so the intended use was not exclusively audio.If used in push pull an output of 4 Watts is possible, but this valve was not expected to be used for hi fi.See also EL91.![](../pics/aam0083a.jpg)

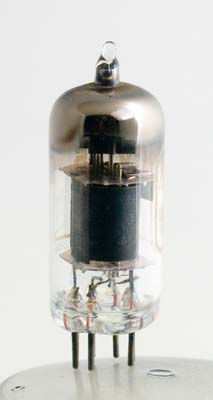

The anode has no gaps and obscures the inner electrodes.The thin glass tube envelope is 17 mm in diameter and excluding the B7G base pins, is 44 mm tall.References: Data-sheet & 1040. Type CV136 was first introduced in 1949. See also 1949 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) g1 | k | h | h | a | ic | g2 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | Pout | ![](../static/pdflogo.gif)
| 6.3 | 0.2 | 250 | 250 | -13.8 | 16 | 2.4 | 130k | 2.6 | 1.4W |
|
