WD142

Sensibly equivalent to:
UAF42

Extras ▼



The WD142 is a variable μ pentode and a single diode package. The Mullard UAF42 is its equivalent. This type of valve was designed for radio receivers. The variable μ characteristic enables the gain to be varied according to signal strength via an AGC circuit. This valve could have been used for AGC detection and as final IF amplifier.

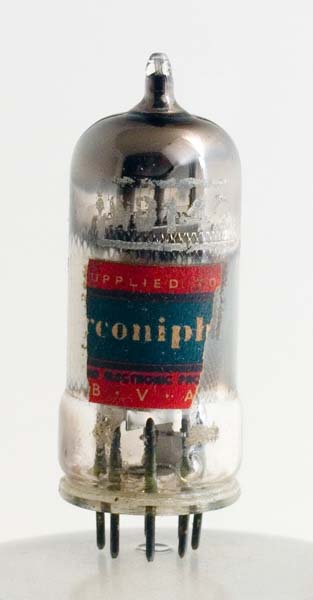

The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 52 mm tall.
References: Datasheet & 1040. Type WD142 was first introduced in 1948.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
a(d)
g3
g2
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
12.6
0.1
200
115
-2.4
6.0
1.9
1.3M
1.9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2013.
