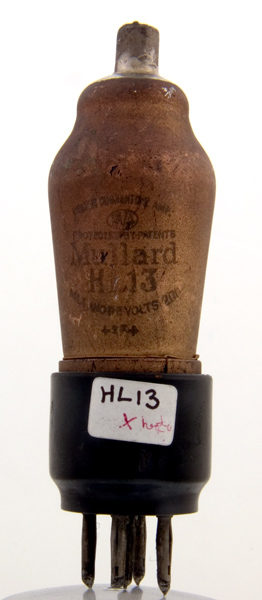

The literature indicates that Mullard made the HL13 in two versions. We have the Ct8 based type and the B7 base option. What we have here is a third version based on a B5 base.
Mullard describe this valve as an indirectly heated medium impedance triode for use in DC/AC mains receivers. The use for the valve would have been as an RF amplifier in radio receivers.
The classic envelope is 36 mm in diameter and, excluding the B5 base pins, is 103 mm tall.
References: Data-sheet, 1040 & 1043. Type HL13 was first introduced in 1934. See also 1934 adverts.



Pin Connections
B5
1
2
3
4
5
6
7
8
tc
m
h
h
k
nc
nc
nc
a
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
13.0
0.2
200
-3.7
5.0
12,000
3.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
