VP4A

Sensibly equivalent to:
A50M AC/VP1 MVS-Pen VP4 VPT4B
See also:
CV1172 short entry

Extras ▼



The VP4A is a variable μ screened pentode designed for mains radio receivers. The variable μ characteristic enables automatic gain control of RF and IF amplifiers in superhet receivers. The VP4A was made in both B5 and B7 base formats.

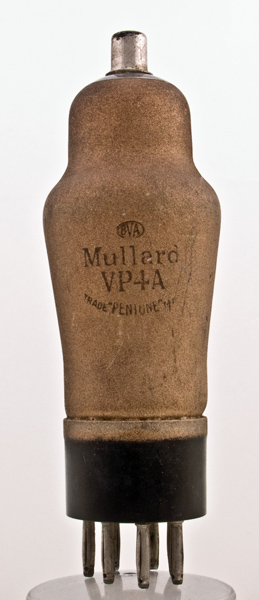

Both base formats were issued in 1934. Our B5 base VP4A version has the early screw top cap. This exhibit has the later 'top hat' top cap and the shouldered or classic envelope shape.
The classic envelope is 44 mm in diameter and, excluding the B7 base pins, is 119 mm tall.
References: Data-sheet, 4024 & 1040. Type VP4A was first introduced in 1934. See also 1934 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
g1
g3
h
h
k
g2
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
1.2
200
100
-1.5
4.25
1.8
1.4M
2.5
PDF scanned from an original document held by the museum
