2P

Sensibly equivalent to:
AC042 PA20 S30D

Extras ▼



The Cossor 2-P is a directly heated audio output triode.
The anode load was 3,000Ω, the cathode resistor was 550Ω and the audio power output was 2.0 Watts at 5% distortion.
The anode box is small front to back.
The face view shows four inverted V filament loops. The wire is oxide coated.
The filament tension springs sit on the top mica. The grid supports are spaced with a metal plate. The anode has ridges pressed into it for extra rigidity.
The pinch and lower end of the anode. Here the grid can be clearly seen as can the fact that the filament is held secure within folded supports.

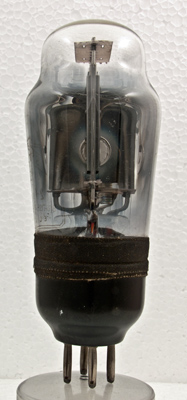

The classic envelope is 50 mm in diameter, and excluding the B4 base pins is 116 mm tall.
References: 1040 & 1043. Type 2P was first introduced in 1939.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
2.0
0.7
250
-22
40
1,150
7.0
Updated November 11, 2013.
