6AG5

Sensibly equivalent to:
6186 6J3P CV848 EF96

Extras ▼



The 6AG5 is a low power amplifier beam tetrode that features a low anode to cathode capacitance and has two small anode plates at a wide separation from the cathode. It can operate as an RF or IF amplifier with a maximum operating frequency of 400 MHz.

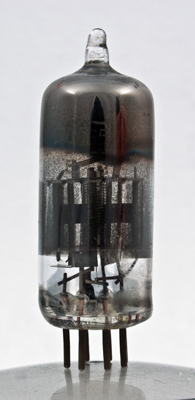

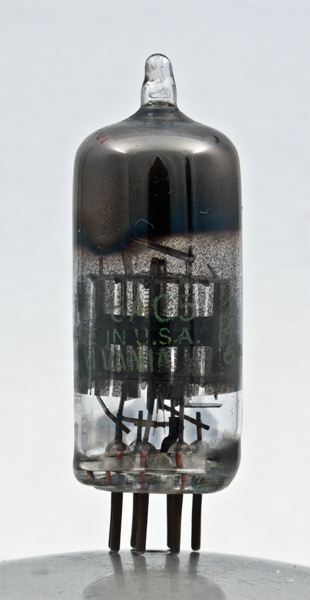

The coating on the inside of the glass obscures the internal structure. The cathode and grids are in the centre and the beam forming plates can be seen between the cathode and anode. Their form is as a flat rectangular plate with the centre removed so that the vertical sides are 3-4 mm wide.
The thin glass tube envelope is 17 mm in diameter and excluding the B7G base pins the valve is 47 mm long.
References: Datasheet & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-1.8
7
2
0.8M
5
Thanks to Frank Philipse for supplying the above PDF datasheet.
