VS110A

Sensibly equivalent to:
CV1582

Extras ▼



The VS110A is a selected VS110 for special circuit requirements. The voltage is stabilised with a variation of no more than six Volts and that is a tighter regulation than the basic type.
Although no makers name is present the etched identification is typical M-OV.

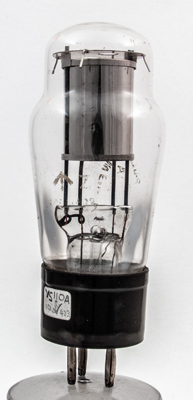

The cylindrical anode and top mica holding the electrodes in place.

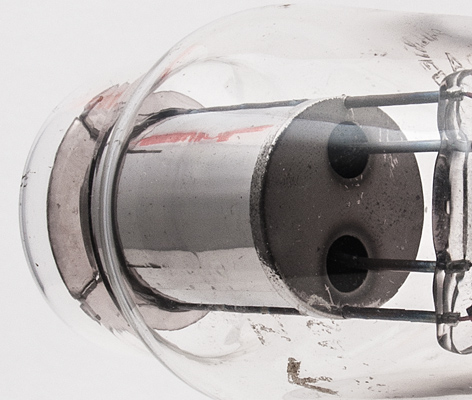

The underside of the anode cylinder. There are two cathode connections - the rods.

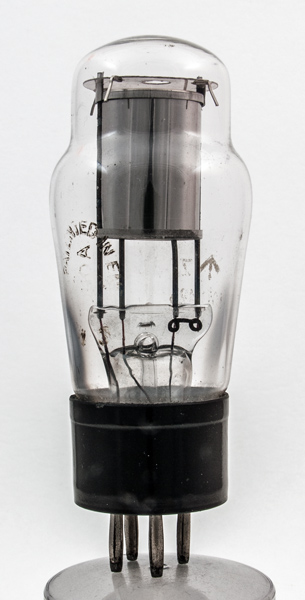

The classic envelope is 45 mm in diameter, and excluding the B4 base pins is 102 mm tall.
Reference: Datasheet.



Pin Connections
B4
1
2
3
4
a
k
-
-



Absolute Maximum Operating Conditions
Stabiliser
Va
120
Thanks to Frank Philipse for supplying the above PDF datasheet.
