Sensibly equivalent to:
27A X962106
Extras ▼


The CV982 is described as both a neon indicator and a Tuneon Button. The General Post Office code for this Type is 27A.
Operation is from a 200 to 260 Volt supply with a series resistor that is greater than 300,000Ω

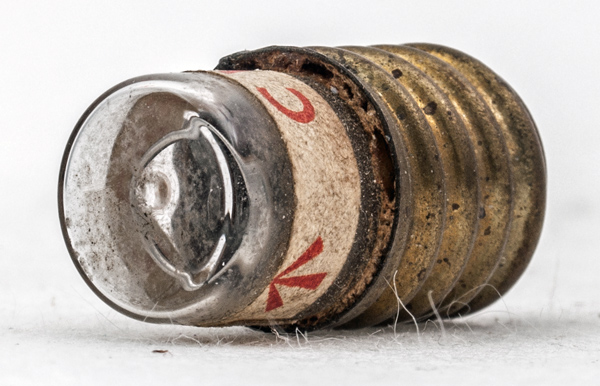

The electrodes are an outer ring with a central curved rod.

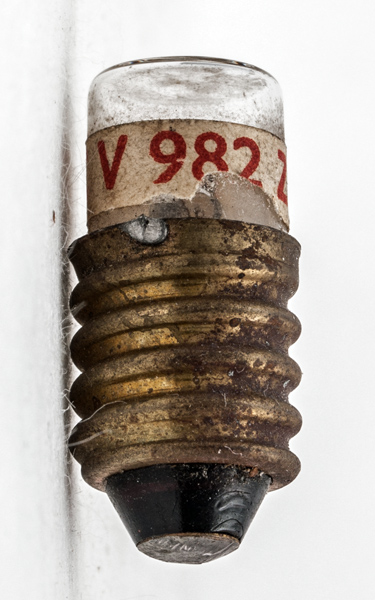

The thin glass tube envelope is 12 mm in diameter, and excluding the SES base is 30 mm tall.
Reference: 3002.


Absolute Maximum Operating Conditions
General Notes
Updated October 20, 2014.
shape:thin.glass.tube type:cold.cathode base: pin:
