6AL5

Sensibly equivalent to:
6058 6D2 CV140 CV283 D152 D77 DD6 EAA91 EB91
See also:
Zaerix 6AL5/EB91 Box

Extras ▼

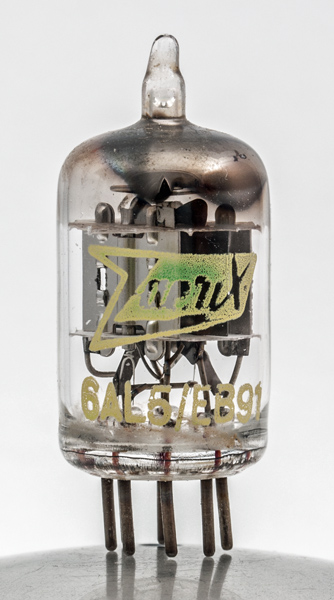

The 6AL5 is a double signal diode and equivalent to the EB91.
These double diodes were designed for sound and vision detection in 405 line televisions. Additionally they are recommended for limiting and DC restoration, again part of a TV receiver functionality.
The two small diodes are separated by a central screening plate.

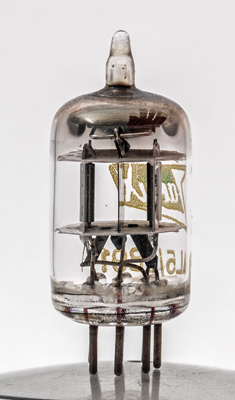

One diode showing the stitched anode and small central space for the cathode tube.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 37 mm tall.
References: Datasheet & 1040. Type 6AL5 was first introduced in 1945.



Pin Connections
B7G
1
2
3
4
5
6
7
k(1)
a(2)
h
h
k(2)
s
a(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 03, 2015.
