6097

Sensibly equivalent to:
5726 6AL5W CV4007 E91AA M8212

Extras ▼

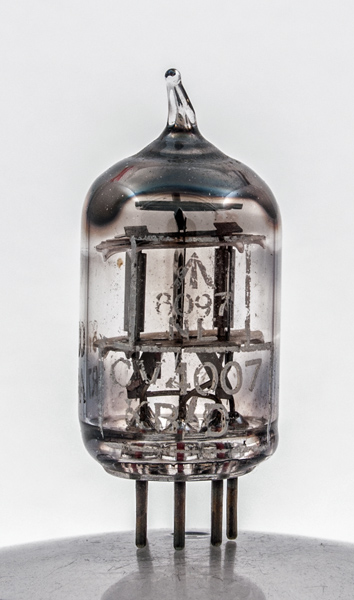

This 6097 is also marked as a CV4007. It is a miniature all glass premium quality pair of signal diodes. The design was for detector service in wide band equipment. This would typically be RADAR.
The premium version is designed to be used in areas of shock and vibration such as aircraft equipment. The 6097 is identical to the 5726, 6AL5W and CV4007.
The domestic version of these diodes the 6AL5 was used as the video detector in domestic television receivers.
The two diodes are completely separate nearly flat structures separated by a metal screen.

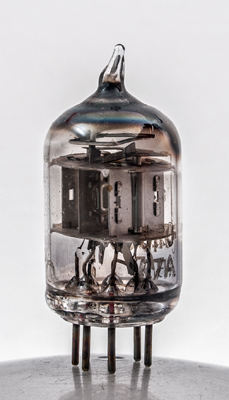

The pair of diodes separated by the screen.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 36 mm tall.
Reference: Data-sheet. Type 6097 was first introduced in 1952.



Pin Connections
B7G
1
2
3
4
5
6
7
k(1)
a(2)
h
h
k(2)
s
a(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 11, 2021.
