3E29

Sensibly equivalent to:
829 829B CV632

Extras ▼

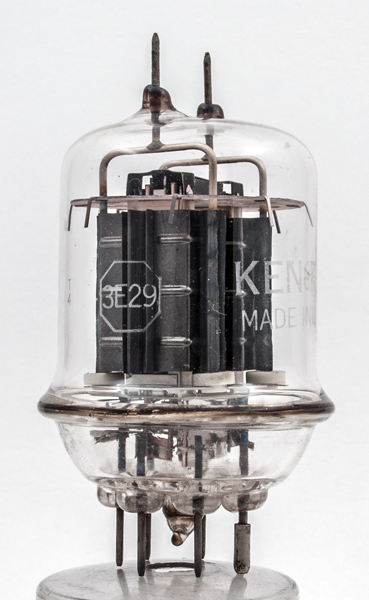

The 3E29 is closely related to the 829B American pattern VHF double tetrode and has the same pin connections. However, the 3E29 is specifically designed for pulse modulator service rather than for use as a VHF PA.

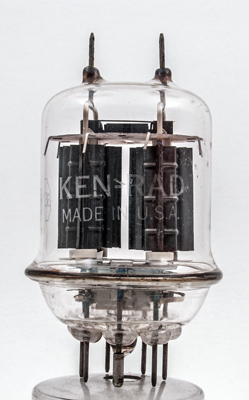

The maker's identification etched into the glass. Inside are the two beam tetrode sections seen along the grid axis. The anode join flanges are at the centres of the working faces.

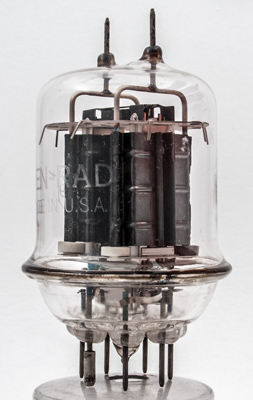

The control grids are wound on copper supports.

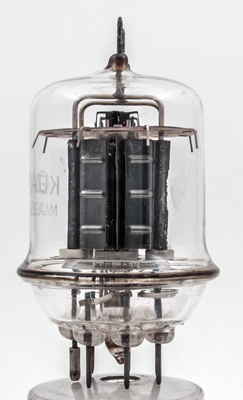

One anode seen face on. There are three flat projections at the centre of the anode.
The wide glass tube envelope is 50 mm in diameter and, excluding the B7A base pins, is 91 mm tall.
Reference: Datasheet.



Pin Connections
B7A
1
2
3
4
5
6
7
tc
tc
h
g1(2)
g2
k,bp
hct
g1
h
a
a(2)



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
gm
6.3
2.25
5,000
850
8.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
