5CG4



Extras ▼

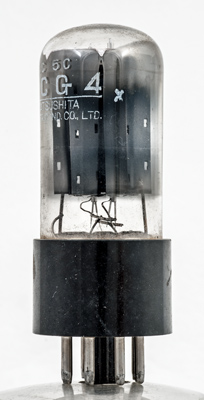

The 5CG4 full wave rectifier has a maximum PIV of 1,400 Volts. The overall parameters place it as just below the rating of the GZ34 another 5.0 Volt heated rectifier.

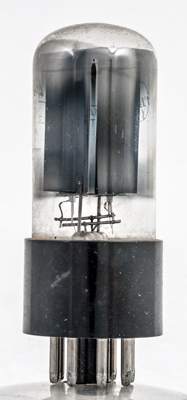

The stitched anode plates have a central flange facing the envelope wall.
The construction is an indirect heated rectifier but joining the cathode to one side of the heater removes the issue of heater/cathode breakdown voltage. With a 5.0 Volt heater this rectifier would be normally coupled to a transformer winding especially for the rectifier.
The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 72 mm tall.
Reference: Datasheet. Type 5CG4 was first introduced in 1957.



Pin Connections
IO
1
2
3
4
5
6
7
8
-
h
-
a(1)
-
a(2)
-
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
350
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 04, 2019.
shape:wide.glass.tube construction:pinch type:rectifier.fw age:1950.1960 base:io heater:5.0v pins:8 pin:1.- pin:2.h pin:3.- pin:4.a(1) pin:5.- pin:6.a(2) pin:7.- pin:8.h.k
