12BA6

Sensibly equivalent to:
CV1928 HF93
See also:
RCA Victor 12BA6 Box

Extras ▼



The 12BA6 is a variable μ pentode for use at HF within AC/DC receivers. Most probably as RF amplifiers. The 300 mA heater is clearly rated for series heater chain use.

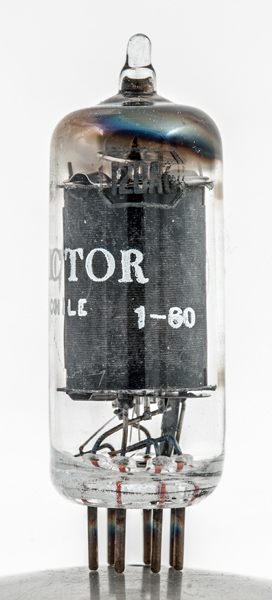

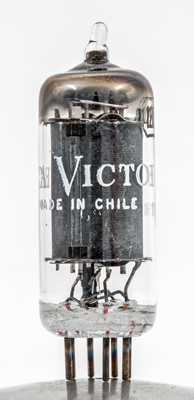

The brand name RCA Victor and made in Chile.

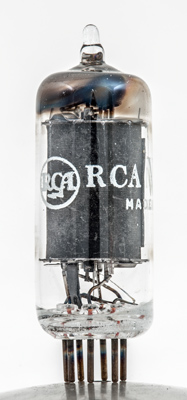

The RCA Logo.

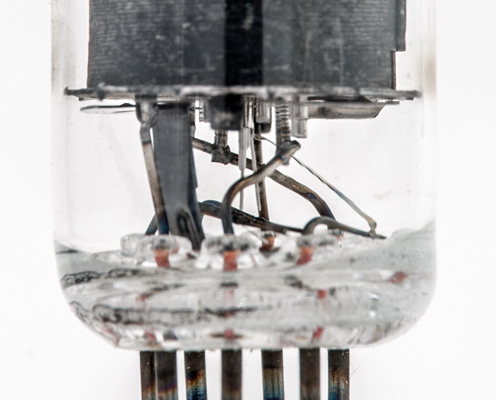

The bottom mica components. The vertical screen on the left shields the anode connection.
The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins, is 47 mm long.
References: Datasheet & 1040. Type 12BA6 was first introduced in 1946.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
g3,s
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
gm
12.6
0.15
250
100
-1
11
4.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 14, 2019.
shape:thin.glass.tube construction:all.glass type:pentode age:1940.1950 base:b7g heater:12.6v pins:7 pin:1.g1 pin:2.g3.s pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.k
