6AJ5

Sensibly equivalent to:
CV995

Extras ▼



The 6AJ5 is a sharp cut-off pentode for use at high frequencies and low supply voltages.

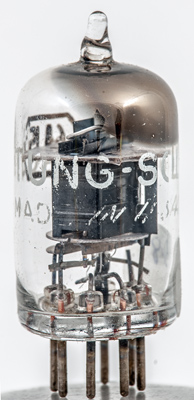

The Tung-Sol name and Made in USA.
There is not much detail of the construction to be seen.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 35 mm tall.
Reference: Datasheet. Type 6AJ5 was first introduced in 1956.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
6.3
0.3
180
180
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 14, 2019.
shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.k
