GD108M

Sensibly equivalent to:
0B2 CV1833

Extras ▼

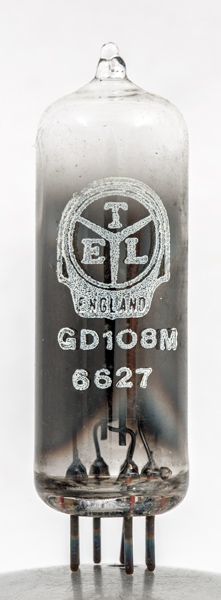

The GD108M is a gas filled voltage stabiliser. The nominal stabilised voltage is 108 Volts. The striking voltage is 127 Volts.
The internal coating obscures the inner structure.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 55 mm tall.
Reference: Data-sheet. Type GD108M was first introduced in 1958.



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
ic
k
a
ic
k



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
108
5 -30
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 19, 2020.
shape:thin.glass.tube construction:pinch type:voltage.stabiliser age:1930.1940 base:b7g pins:7 pin:1.a pin:2.k pin:3.ic pin:4.k pin:5.a pin:6.ic pin:7.k
