12BY7A

Sensibly equivalent to:
12BV7 12DQ7 7733

Extras ▼



The 12BY7A is a 1950s video amplifier output valve designed for boosting wideband TV video signals to a sufficiently high level to be transmitted over a considerable length of cable without loss of quality.
The heater is rated for 12.6 volt use and is centre tapped. Makers describe the 12BY7A as a pentode but the construction is as a beam tetrode.
Henning Hertz comments that the 12BY7A was widely used by radio amateurs in the 1960's and 1970's as a driver stage for a pair of 6146B tetrodes in the PA (final stage) of HF transmitters up to 30 MHz.

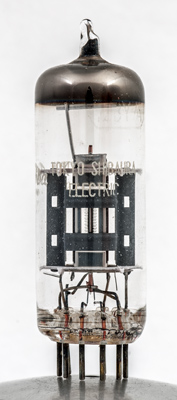

With the anode presented as two plates joined by straps the internal structure is clearly visible.

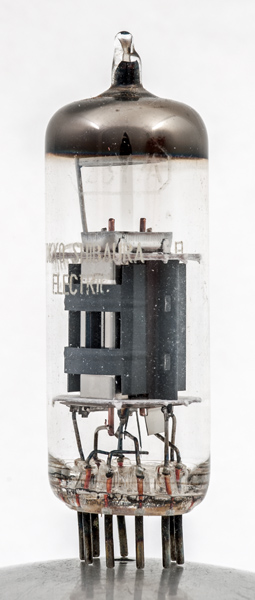

The anode has flanges in the centre of the working faces.

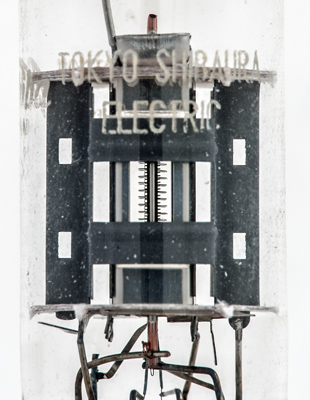

A closer view of the inner grids and the beam plates. The grid wires are formed to pass flat across the cathode.

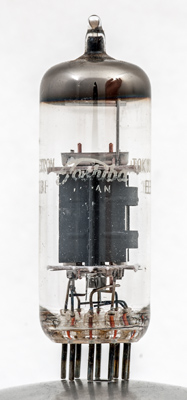

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 58 mm tall.
References: Data-sheet, 1040 & Henning Hertz. Type 12BY7A was first introduced in 1955.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k
g1
g3
h
h
hct
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.6
250
150
-68
25
6
110k
12
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 08, 2020.
