6CB6

Sensibly equivalent to:
CV3995

Extras ▼



The 6CB6 is a sharp cut-off amplifier valve. The 6CB6 was designed for use as IF amplifiers at frequencies above 20 MHz.

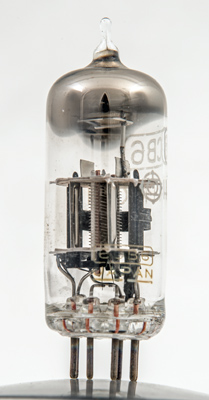

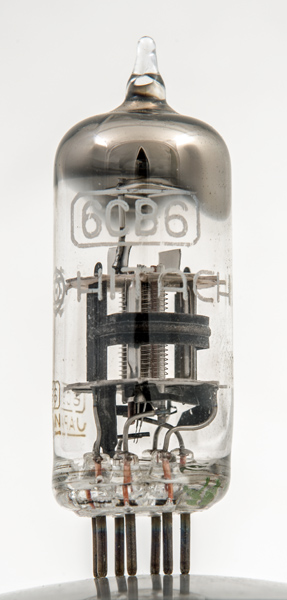

The image shows both the screen grid and the smaller pitch control grid. The latter is wound on copper supports. The beam confining plates are bright and the small anode plates are carbonised.
The envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
References: Data-sheet.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
ra
gm
6.3
0.3
200
150
9.5
2.8
0.6M
6.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
