LF210



Extras ▼

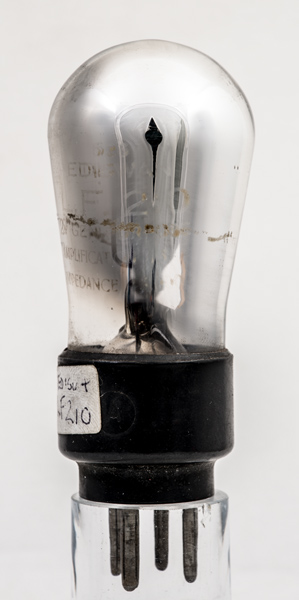

The Ediswan LF210 is a general purpose low frequency triode - this is stated on the envelope. The envelope also gives the amplification factor and anode AC impedance.

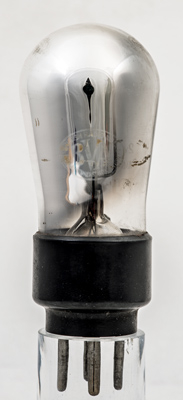

The bright anode and filament centre support.
The BVA logo etched into the glass.
The balloon envelope is 39 mm in diameter and, excluding the B4 base pins, is 85 mm tall.
Reference: Data. Type LF210 was first introduced in 1927. See also 1927 adverts.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
μ
2.0
0.1
120
-
-
13,000
13
Updated May 20, 2023.
