KT74



Extras ▼



The KT74 beam tetrode was produced WWII and was designed for use in the audio output stage of universal mains receivers that could operate on DC mains and so did not have a mains transformer.
The audio output was given as 2 W when the anode load was 5,000Ω and the cathode resistor was 300Ω.

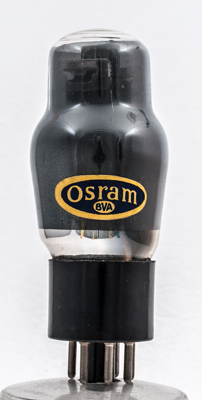

The Osram eliptical paper label.

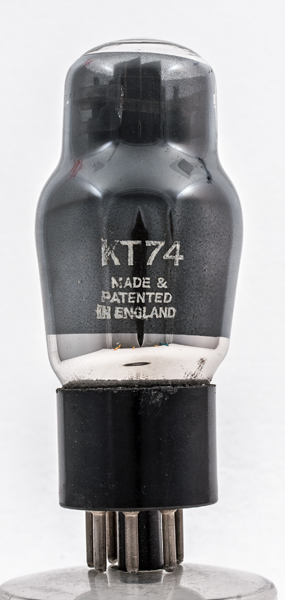

The classic envelope is 38 mm in diameter, and excluding the IO base pins is 85 mm tall.
References: 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
-
h
k,bp



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
15
0.16
170
175
-13
30
6.0
2.5
Updated January 20, 2017.
shape:classic construction:pinch type:beam.tetrode age:1940.1950 base:io heater:160ma pins:8 pin:1.m pin:2.h pin:3.a pin:4.g2 pin:5.g1 pin:6.- pin:7.h pin:8.k.bp
