W31

Sensibly equivalent to:
CV3806 CV3807

Extras ▼



The W31 is a variable-μ RF pentode on a B7 base and designed for use on a 300 mA series heater chain in universal (AC and DC) mains sets.
The W31 is pin compatible with the Catkin W30 but has a higher specification.

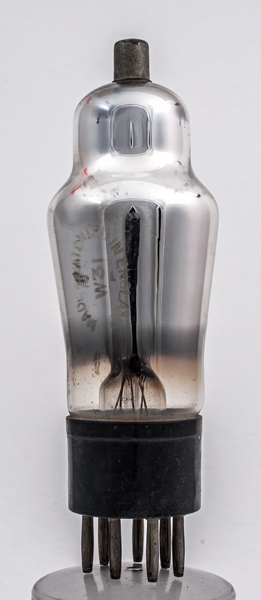

Looking under the extensive silver gettering the only clear detail is of the heater entering the round cathode tube, The cathode is fixed to a lower screen.
The classic envelope is 44 mm in diameter, and excluding the B7 base pins is 119 mm tall.
References: Datasheet, 1040 & 1043. Type W31 was first introduced in 1935.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
g1
g3
h
h
k
g2
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
13.0
0.3
200
100
-2.0
8.0
5.0
2.7
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 20, 2017.
shape:classic construction:pinch type:pentode age:1930.1940 base:b7 heater:300ma pins:7 pin:1.m pin:2.g1 pin:3.g3 pin:4.h pin:5.h pin:6.k pin:7.g2 pin:tc.a
