APV4

Sensibly equivalent to:
1867 1W4-350 CV1039 MU14 R3 R42 UU5

Extras ▼

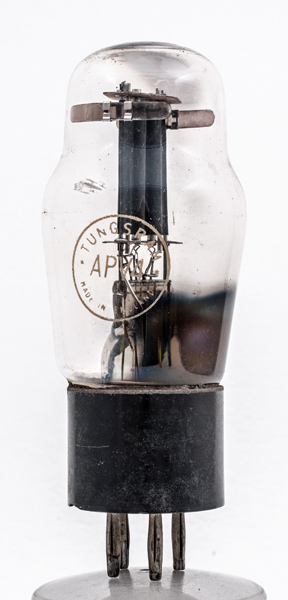

The APV4 is the Tungsram implementation of this very common power rating indirectly-heated full wave HT rectifier. Our other APV4 has box anodes.
This type of rectifier was used in larger radios from the mid-1930s and remained in the lists until the 1960s.

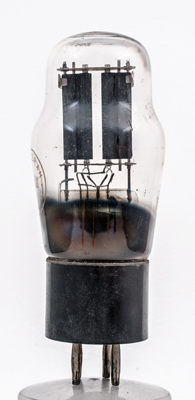

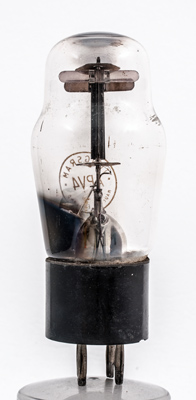

The heaters are connected in parallel and one side is fixed to the cathodes. The black pressed sheet anodes have a cylinder formed at one end into which is fed the cathode. The flattened side wings of each anode are connected to two supporting rods.
The front to back dimension of the anodes is 4mm.
The classic envelope is 45 mm in diameter, and excluding the B4 base pins is 101 mm tall.
References: Datasheet & 1040. Type APV4 was first introduced in 1936.



Pin Connections
B4
1
2
3
4
a(1)
a(2)
f
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
2.3
400
120
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 20, 2017.
