PM22D

Sensibly equivalent to:
CV3578
See also:
Mullard PM22D Box

Extras ▼



The PM22D is a high sensitivity battery output pentode from the mid 1930's.

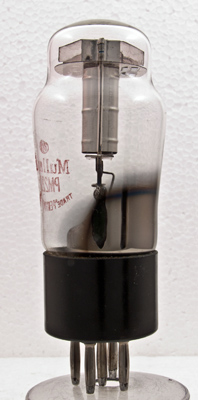

The anode is oval shaped and the electrodes are held firm in the shouldered envelope by the push-fit top mica.

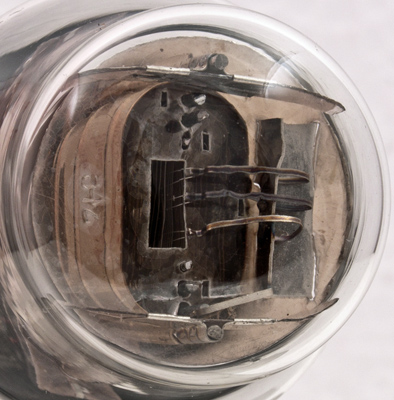

The top mica showing the three inverted oxide coated filament strands held in place by three tension arms.
The classic envelope is 40 mm in diameter, and excluding the B5 base pins is 95 mm tall.
References: 1937 Data-sheet, 1040 & 1043. Type PM22D was first introduced in 1936. See also 1936 adverts.



Pin Connections
B5
1
2
3
4
5
a
g1
f-
f+
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
2.0
0.3
135
135
-2.4
5.0
0.8
3.0
Thanks to Andy Cowley for supplying the above PDF datasheet.
Updated April 04, 2013.
