CV4025

Sensibly equivalent to:
6058 6AL5 CV4007 M8079 QA2404
See also:
Mullard Special Quality Valves - General Data

Extras ▼

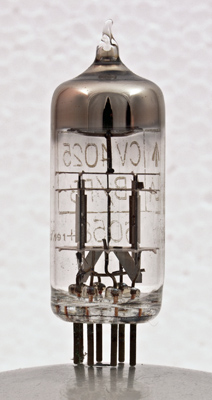

The CV4025 is the UK Government procurement specification and the commercial equivalent is the 6058 and the prototype was the CV140. This special quality double diode is based on the 6AL5. These diodes are for signal rectification at medium frequencies eg video.
The KB/FB identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the FB identifies the maker as STC, Footscray.
One of the diode sections seen in face elevation.
The two sections and central screen end elevation.
The two diodes are separated by a full height metal plate screen. The anodes are made of two thin plates 10 mm long and 8 mm high, pressed to leave a vertical 2 mm diameter tubular cavity. Into this cavity is fitted the cathode assembly.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 48 mm tall.
References: Data-sheet & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
k
a(2)
h
h
k(2)
s
a



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
9
Thanks to Frank Philipse for supplying the above PDF datasheet.
