CV3815

Sensibly equivalent to:
3B22

Extras ▼



The CV3815 is a xenon filled full wave rectifier.
See 3B22 for more details.

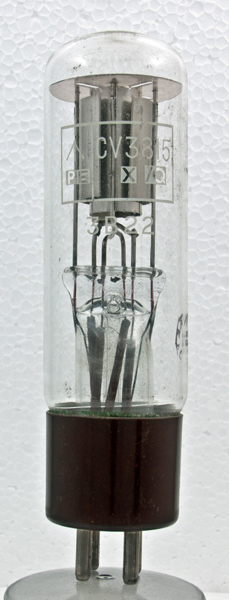

The wide glass tube envelope is 37 mm in diameter, and excluding the UX4 base pins is 125 mm tall.
Reference: Data-sheet. Type CV3815 was first introduced in 1953. See also 1953 adverts.



Pin Connections
UX4
1
2
3
4
f
a(1)
a(2)
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
2.5
6.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
