CV4503

Sensibly equivalent to:
5A/174G 7434 CV472 CV476 VX7106 VX8124

Extras ▼



The CV4503 is a miniature pentode with flying leads for direct wiring into a circuit. The operating parameters give a frequency of 50 MHz.

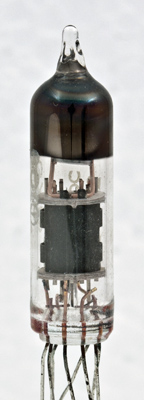

The face of the anode.

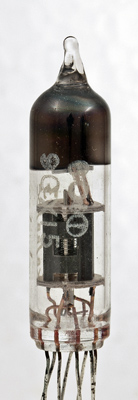

The side of the anode is open and the three wire grids can be seen. The internal connections from the base are made in copper.

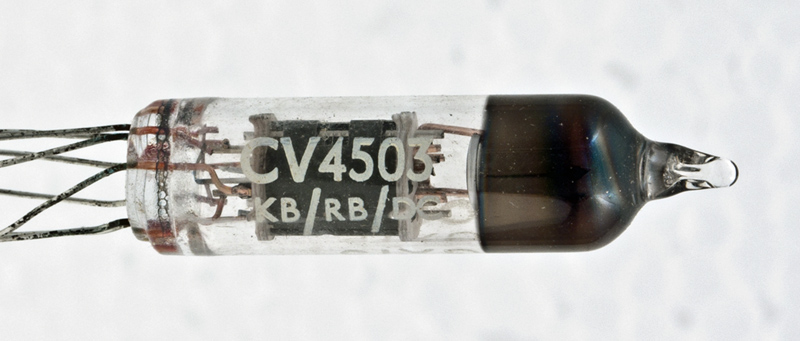

The thin glass tube envelope is 10 mm in diameter, and excluding the base leads is 37 mm tall.
Reference: Datasheet. Type CV4503 was first introduced in 1960.



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
6.3
-
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
