6BN6

Sensibly equivalent to:
CV3616
See also:
Gated Valves - The Gated-Beam Valve

Extras ▼



Type 6BN6 is a late 1940s 'gated beam' valve in which a carefully formed electron sheet or beam is deflected, by control elements on and off of the anode. This 'chops' the amplified signal, typically at a very high rate.
By using two gated beam valves signals from two different inputs can be selected, chopped, or interchanged at any desired rate. The data-sheet on 6BN6 & 6BN6 gives a detailed description of the valve and use and is in two parts. The data-sheet here gives the usual operating details.

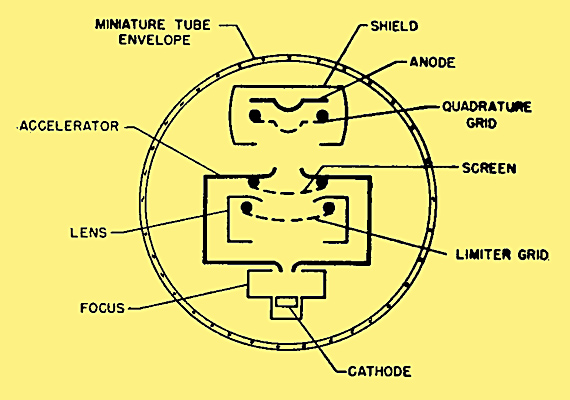

A diagram of the electron path in a 6BN6 gated beam valve.

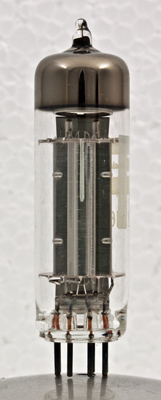

Looking along the electron path, the heater and cathode is in the foreground.

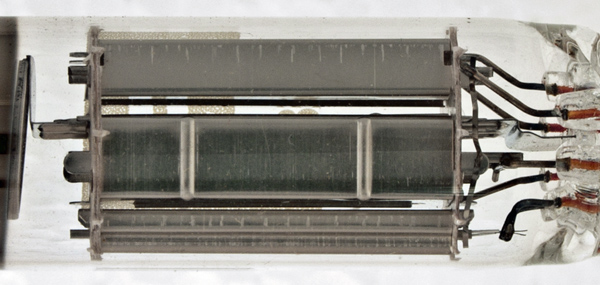

Looking side-on to the electron path. The heater/cathode is at the bottom of the image.

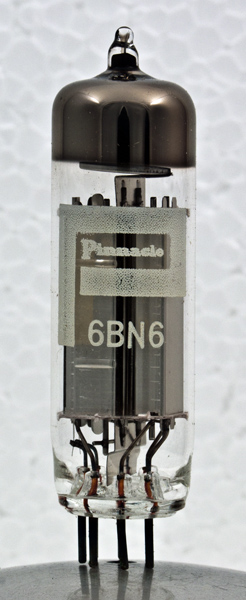

The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 57 mm tall.
References: Datasheet & Brian Cuff.



Pin Connections
B7G
1
2
3
4
5
6
7
k
g1
h
h
g2
g3
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
6.3
0.3
80
60
-1.3
0.23
4.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 13, 2013.
