2-01C

Sensibly equivalent to:
EA53

Extras ▼



The 2-01C is a miniature UHF diode with a useful range up to 3 GHz. As a measuring diode the characterists remain within ±1dB up to 700 MHz.
In use it would be fitted into a probe in much the same way as the EA52 and EA53.

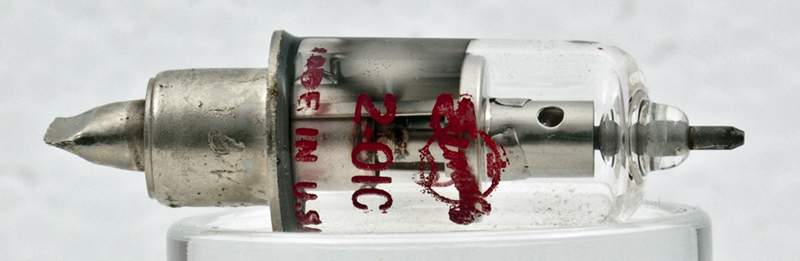

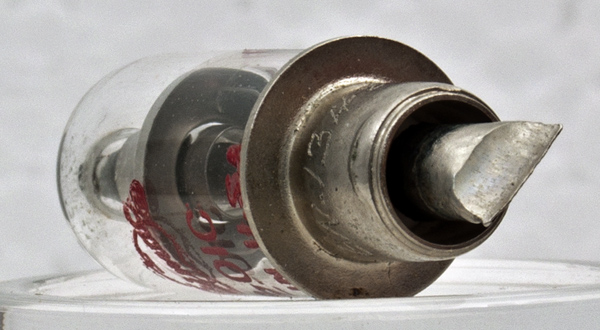

The anode pin or probe end.

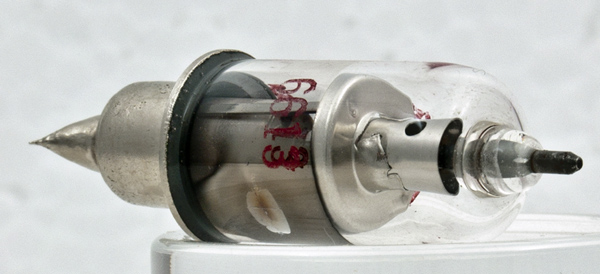

The inner evacuation tube forms one heater connection and the outer ring is the cathode and other heater connection.

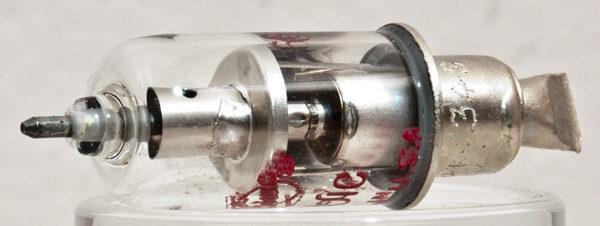

Another view showing the glass to metal seal.
The thin glass tube envelope is 13 mm in diameter, and overall is 45 mm tall.
Reference: Datasheet. Type 2-01C was first introduced in 1958.



Absolute Maximum Operating Conditions
Diode
Vh
Ah
mAa
5.0
0.35
1.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
