10D1

Sensibly equivalent to:
2D13C ARDD1 CV1300 CV1418 DD13 ZD
See also:
Brimar Ten Times Tested Advert

Extras ▼



The 10D1 is a double diode for use on 200 mA series heater chains as would be found in radio receivers and early television receivers.

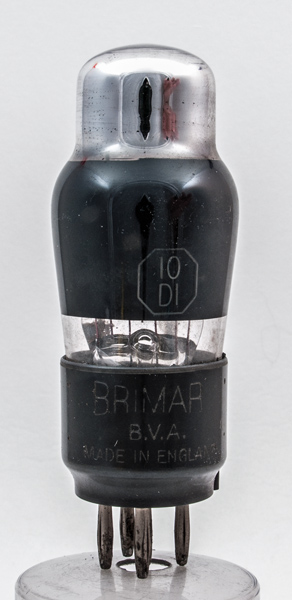

This example has a black coating inside the envelope that obscures the electrodes. Our other 10D1 has a clearer envelope.
The classic envelope is 38 mm in diameter and, excluding the B5 base pins, is 92 mm tall.
References: Datasheet & 1043. Type 10D1 was first introduced in 1936.



Pin Connections
B5
1
2
3
4
5
a(1)
a(2)
h
h
k



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
13.0
0.2
50
8.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 11, 2015.
shape:classic construction:pinch type:double.diode age:1930.1940 base:b5 heater:200ma pins:5 pin:1.a(1) pin:2.a(2) pin:3.h pin:4.h pin:5.k
