150C4

Sensibly equivalent to:
0A2 CV1832 G150/4K QS1207
See also:
Mullard Voltage Reference and Stabiliser Tubes Advert

Extras ▼



The 150C4 is a voltage stabiliser designed for burning currents between 5.0 and 30 mA where the voltage will stay within eight Volts of the nominal 150 Volts stabilised.

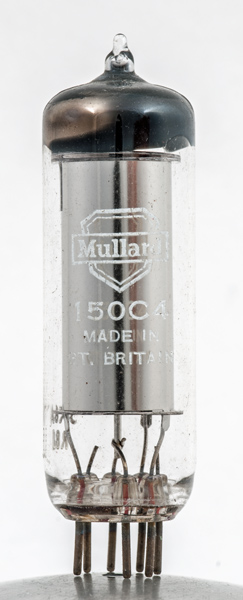

The outer cathode cylinder with central anode.

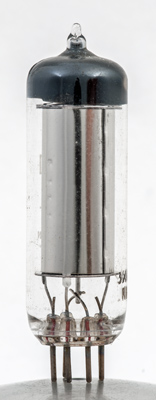

The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 58 mm tall.
Reference: Data-sheet.



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
ic
k
a
ic
k



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
150
30.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 16, 2020.
shape:thin.glass.tube construction:all.glass type:voltage.stabiliser age:1950.1960 base:b7g pins:7 pin:1.a pin:2.k pin:3.ic pin:4.k pin:5.a pin:6.ic pin:7.k
