874

Sensibly equivalent to:
CV643

Extras ▼



The 874 is a voltage regulator. The regulated voltage is 90 Volts and the striking voltage is 125 Volts.

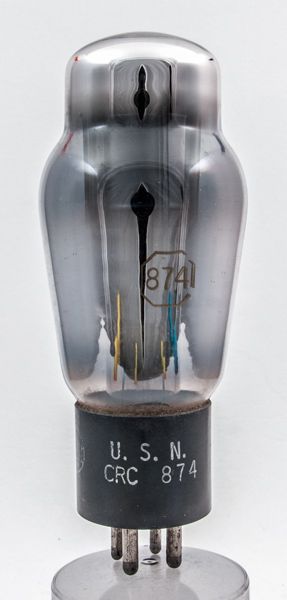

The classic envelope is 52 mm in diameter, and excluding the UX4 base pins is 119 mm tall.
References: Data-sheet, 1040 & 1043.



Pin Connections
UX4
1
2
3
4
k
j
a
j



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
90
10-50
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 21, 2015.
