CV360

Sensibly equivalent to:
NE18 VX3039

Extras ▼



The CV359 and CV360 are gas filled power indicator tubes based on the VX3039. The design use is to indicate peak power in an S-band waveguide. The CV360 is the more sensitive and carries the commercial designation NE18.

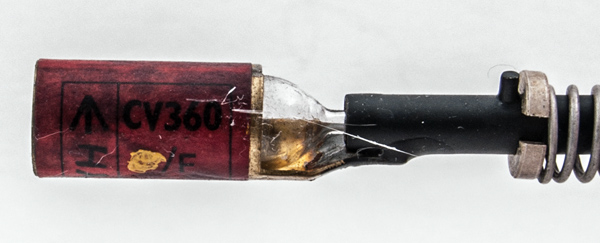

The KB/F identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the F identifies the maker as STC, Paignton.
The red base cap indicates the CV360. The CV359 would have a green base cap.

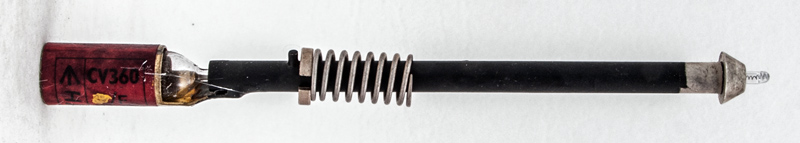

The thin glass tube envelope is 5 mm in diameter, and including the base is 119 mm tall.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
General Notes
Va
0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 23, 2024.
