CV1068

Sensibly equivalent to:
AW4 STV280/40 VS68

Extras ▼

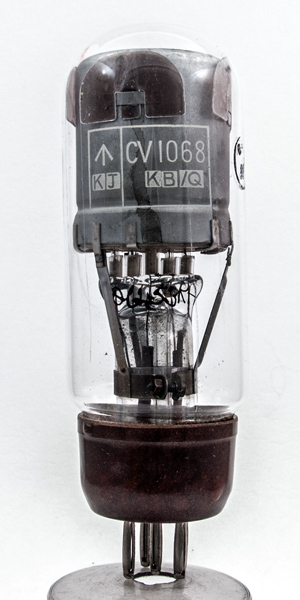

The CV1068 is a four in one voltage stabiliser that GEC marketed as the Stabilovolt. The commercial designation is STV280/40 and has a maximum current draw of 40 mA.
The CV1068 has four anodes, and thus four outputs with gaps of 70 volts each. These output voltages are 70, 140, 210 & 280.
The striking voltage is above 420 Volts and the tube current is 5 - 35 mA. The tube voltage regulation is about a couple of Volts for each 70 Volt step.

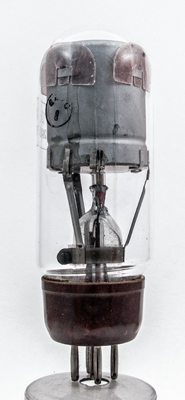

The heavy anode assembly is secured to the pinch stem with a collar, nut and bolt.
The wide glass tube envelope is 47 mm in diameter and, excluding the B5 base pins, is 124 mm tall.
References: Datasheet & R J Sutherland. Type CV1068 was first introduced in 1936.



Pin Connections
B5
1
2
3
4
5
a(4)
k
a(2)
a(3)
a(1)



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
420
55
Thanks to Frank Philipse for supplying the above PDF datasheet.
