CV1698

Sensibly equivalent to:
A819 KTZ41 POVT148

Extras ▼



The CV1698 is an amplifier tetrode with a μ of 4.6 mA/V and an unusual heater rating. It is a UK Post Office design known as the POVT148 or VT no. 48.

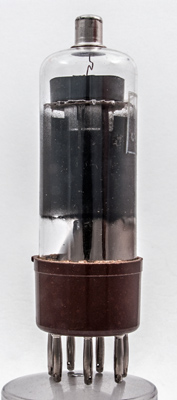

Our other CV1698 has the classic shouldered envelope whereas this has the glass tubular envelope and is thus most likely to be of later production.
The dark coating inside the glass prevents seeing the inner structure.

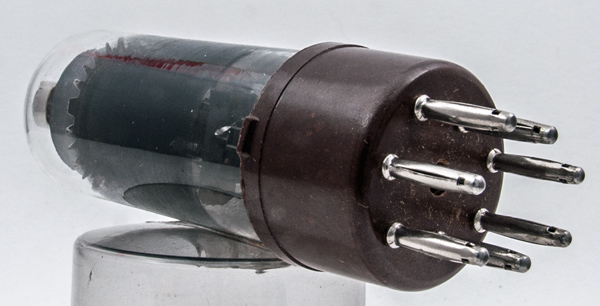

The B7 base pins are brand new. Above the lower mica can just be seen the wire grid.

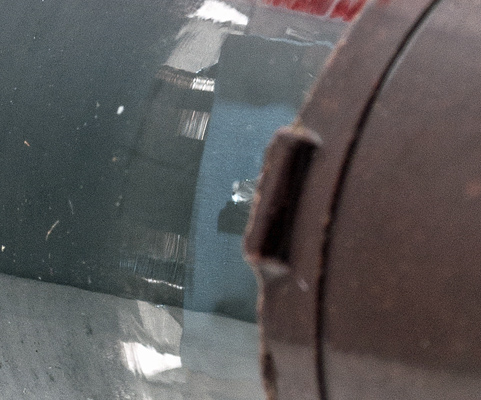

The glass blurs the inside but the grid can be seen.
The classic envelope is 31 mm in diameter, and excluding the B7 base pins is 102 mm tall.
References: Datasheet. Type CV1698 was first introduced in 1946.



Pin Connections
B7
1
2
3
4
5
6
7
tc
-
a
-
h
h
k
g2
g1



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
3.3
1.4
250
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 19, 2015.
