M8090

Sensibly equivalent to:
CV4048

Extras ▼

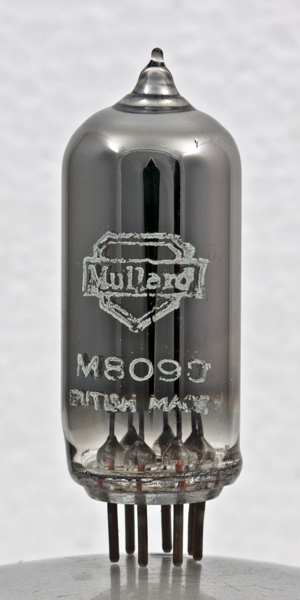

The M8090 / CV4048 is a special quality voltage reference tube. It is designed to operate at 6.0 mA and not to be used to directly supply equipment. Typical use would be the reference in a stabilised power supply.

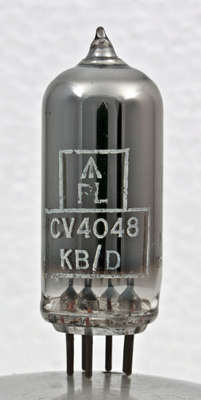

The reverse of the envelope carries the CV designation.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 45 mm tall.
References: Datasheet. Type M8090 was first introduced in 1959.



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
ic
k
a
ic
k



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
85
6.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 14, 2014.
