VP210

Sensibly equivalent to:
210VPT CV3794 VPT2 VS2 W21

Extras ▼

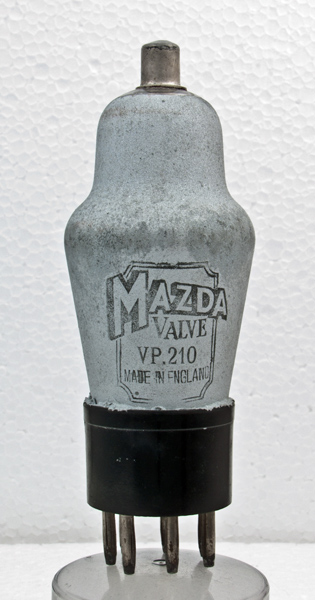

The VP210 is a two Volt variable μ HF pentode designed for use in battery receivers. One application is as a mixer with an external oscillator.

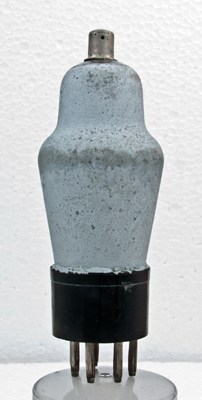

The reverse is plain zinc paint.
The classic envelope is 45 mm in diameter, and excluding the B7 base pins is 108 mm tall.
References: Datasheet, 1040 & 1043. Type VP210 was first introduced in 1936.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
g1
g3
f
f
-
g2
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.1
120
70
-1.5
1.8
0.63
1.45M
0.82
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 17, 2014.
shape:classic construction:pinch type:pentode age:1930.1940 base:b7 heater:2.0v pins:7 pin:1.m pin:2.g1 pin:3.g3 pin:4.f pin:5.f pin:6.- pin:7.g2 pin:tc.a
