AC5/Pen

Sensibly equivalent to:
CV2809 PT10

Extras ▼



The AC5/Pen is an audio output beam tetrode. It was designed for use as a single ended output stage in broadcast receivers. The AC4/Pen offers a greater output of 6.9 Watts for larger sets.
With a cathode resistor of 180Ω and a 5,200Ω load the output is 4.85 Watts with 7% distortion.

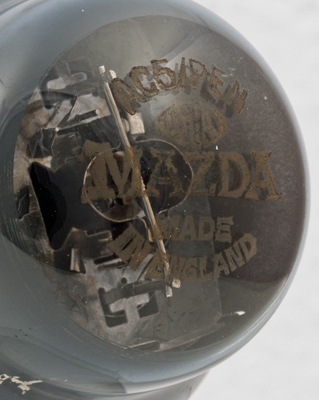

The dome carries the identification.

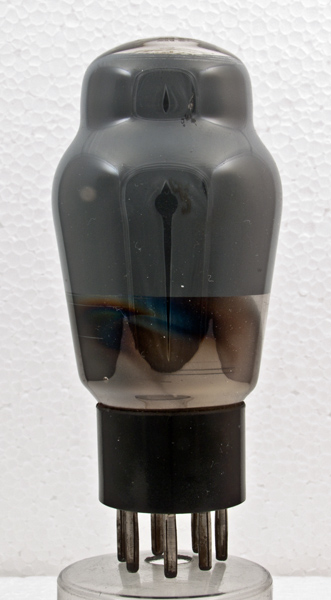

The classic envelope is 54 mm in diameter, and excluding the base pins is 108 mm tall.
References: Data-sheet, 1040 & 1043. Type AC5/Pen was first introduced in 1938. See also 1938 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
nc
g1
g2
h
h
k
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
4.0
2.0
250
250
-8.5
40.0
7.5
9.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 17, 2024.
