EF86

Sensibly equivalent to:
6267 6BK8 6F22 CV2901 Z729
See also:
A Low Cost Amplifier - High Quality Audio Amplification

Extras ▼



The EF86 is a low noise pentode intended for use as a RC coupled AF voltage amplifier, particularly in the early stages of high gain audio amplifiers, microphone pre-amplifiers and magnetic tape recorders. It replaced the EF37A and EF40. In use it is recommended that it is fitted into a vibration resistant base. This has a synthetic rubber mount.

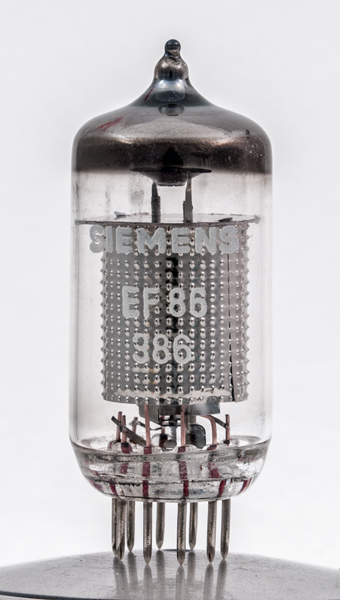

The screen encloses all of the electrodes. The connecting wire from the base pins is copper. Additional screening can be seen below the lower mica.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 48 mm tall.
References: Data-sheet & 1040. Type EF86 was first introduced in 1953. See also 1953 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g2
s
k
h
h
a
s
g3
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.2
250
-5
4
2.5M
2
PDF scanned from an original document held by the museum
