XT45A

Sensibly equivalent to:
F9031A
See also:
XT45A Box

Extras ▼

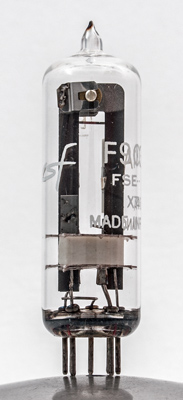

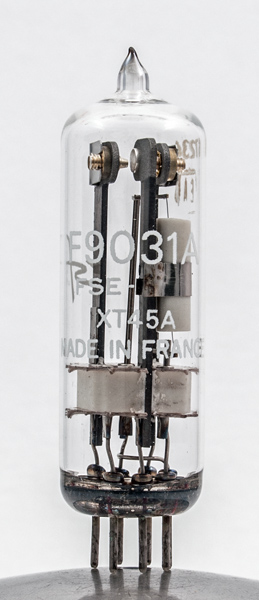

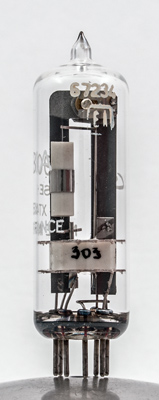

The XT45A or F9031A is a thermal delay switch with a single set of change-over contacts rated at one Amp at 250 Volts.
The electrodes are held within a ceramic block.
The heater is within the vertical ceramic tube and heats the central bi-metallic strip electrode. The latter bends when hot to close the normally open contact.
The heater is a single strand.
The thin glass tube envelope is 18 mm in diameter, and excluding the base pins is 57 mm tall.
Reference: Datasheet.



Pin Connections
B7G
1
2
3
4
5
6
7
-
c
h
h
nc
h
no



Absolute Maximum Operating Conditions
Delay
Vh
Ah
Va
6.3
0.33
250
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 19, 2016.
