VX8107

Sensibly equivalent to:
CV2236
See also:
Tungsram VX8107 Box

Extras ▼

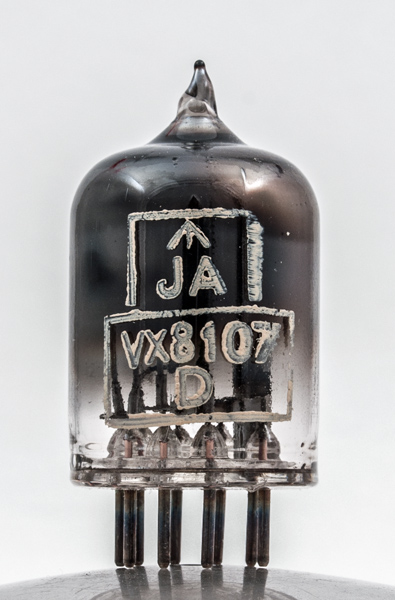

The VX8107 is a low power cold cathode trigger tube.

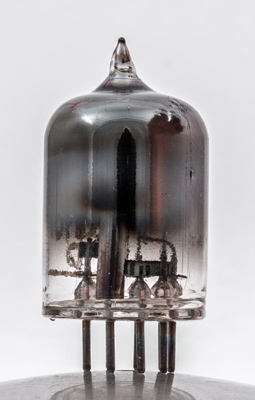

The coating inside the glass prevents observation of the inner structure.
The thin glass tube envelope is 21 mm in diameter, and excluding the B9A base pins is 35 mm tall.
Reference: Datasheet.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
k(a)
a
-
k(a)
t
k
k
k
t



Absolute Maximum Operating Conditions
Cold Cathode
Va
285
Thanks to Frank Philipse for supplying the above PDF datasheet.
