4CX300A

Sensibly equivalent to:
8167

Extras ▼

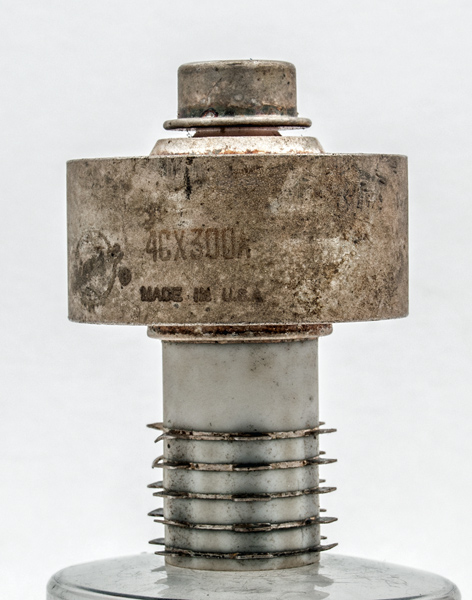

The 4CX300A is a VHF power tetrode with an external anode that is 41 mm in diameter and designed for forced air cooling within a special base and chimney. The maximum frequency of operation at full ratings is 175 MHz and with 1,500 Volts on the anode the 4CX300A can deliver 250 Watts of RF when operated as Class C.
The 4CX300A can also be used in a pair as a Class B audio power amplifier or modulator.
The construction is co-axial and exhibit QV1-150A shows the concentric arrangement of the electrodes. The grids are aligned for minimum screen current.

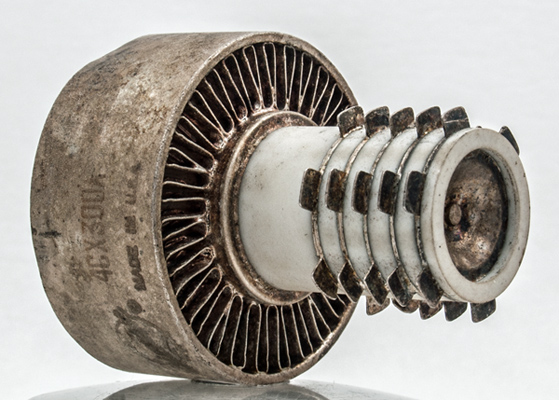

The valve connections and anode cooling fins.

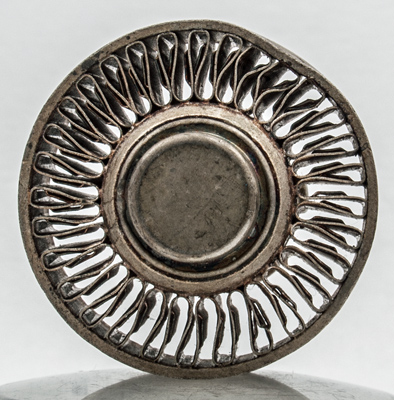

Looking through the anode radiator.
The ceramic tube envelope is 29 mm in diameter, and including the base is 60 mm tall.
Reference: Datasheet. Type 4CX300A was first introduced in 1956.



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
6.0
2.75
2,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 30, 2014.
