5722

Sensibly equivalent to:
SD1033

Extras ▼

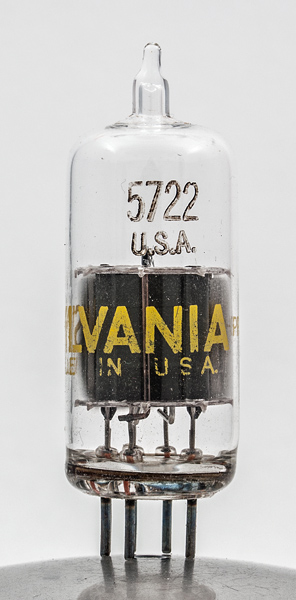

The 5722 is a temperature-limited tungsten-filament diode for use in noise generators. Heater voltage 2.0 to 5.5V, depending upon noise level required. Up to 500 MHz spectrum.
In this side view the filament tension spring can be seen at the top.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 47 mm tall.
References: Data-sheet & 3002. Type 5722 was first introduced in 1955. See also 1955 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
a
nc
f
f
nc
a
fct



Absolute Maximum Operating Conditions
Diode
Ah
1.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 09, 2022.
