6BJ6Sensibly equivalent¶ to:
|
|
|

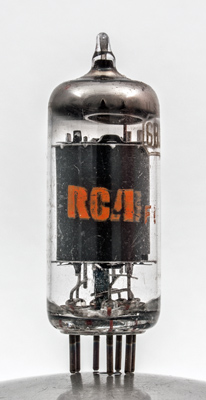

The 6BJ6 is a variable μ RF pentode designed for broadcast radio receiver applications. A key feature is the modest heater power making it attractive for mobile applications.![](../pics/abo0120a.jpg)

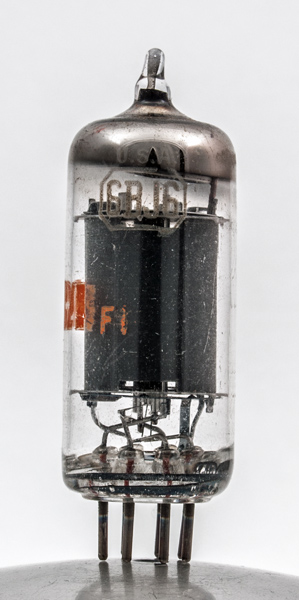

The RCA logo.The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 47 mm tall.References: Data-sheet & 1040. Type 6BJ6 was first introduced in 1947. See also 1947 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) g1 | k | h | h | a | g2 | g3 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.15 | 250 | 100 | -1 | 9.2 | 3.3 | 1.3M | 3.8 |
|
