ECF804

Sensibly equivalent to:
18D3 CV5948

Extras ▼



The ECF804 is a triode pentode designed for application in wide-band amplifiers and instrumentation. Wide band amplifiers require a large mutual conductance, and thus initial high gain, to allow feedback to broaden the bandwidth and flatten the pass-band, all at the expense of gain.

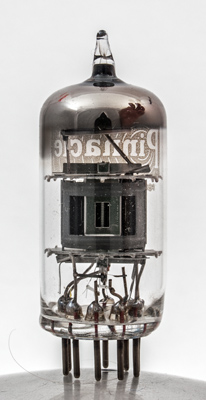

Looking directly into the gap in the anode along the grid axis a bright plate can be seen. Thus this is a beam tetrode rather than a true pentode.

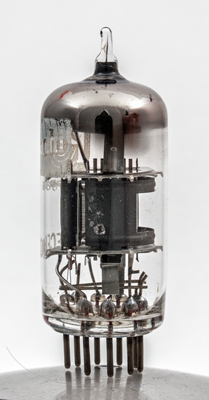

The triode on the left is separated from the pentode section by a bright screening plate.

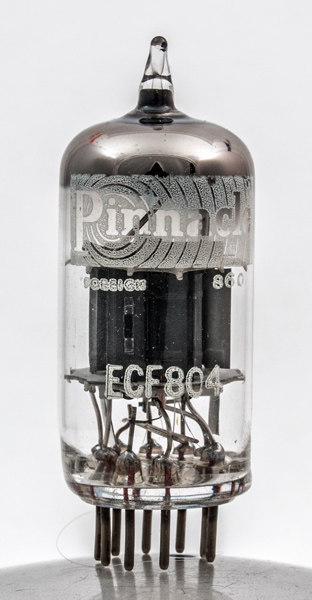

The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 48 mm tall.
References: Datasheet & 1040.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1
g2
h
h
a(p)
k(p),s,g3
k(t)
g(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.45
150
150
-2.0
7.0
2.2
0.35M
11.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
