W61



Extras ▼

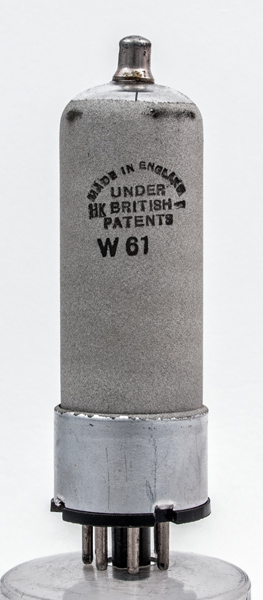

The W61 is a post war variable mu RF pentode for broadcast receivers. The grid bias range is given as -3.0 to -25.0 Volts. Here we have the version with external metalisation of the glass envelope, we also have the plain glass version.
The Marconi branding of this M-OV valve.
The wide glass tube envelope is 29 mm in diameter, and excluding the IO base pins is 96 mm tall.
References: 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g3
-
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
80
-3
8.5
2.8
0.6M
2.9
