AW3

Sensibly equivalent to:
CV1110 S130 VS110
See also:
CV1110 short entry

Extras ▼



The AW3 gas filled voltage stabiliser is on a B4 base. AW3 is the UK Army designation, VS111 is the RAF designation and both types were renamed CV1110.
The striking voltage is 180 V and the burning current is from 6 to 75 mA. Within the current range the regulation is 5 volts.

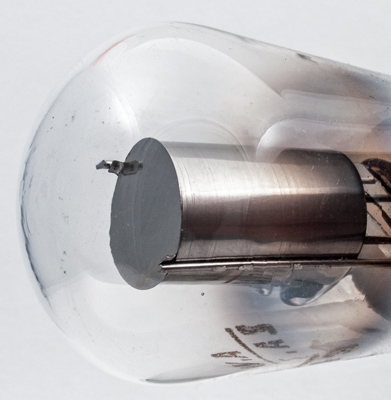

The Anode cylinder with closed top.
The balloon envelope is 50 mm in diameter and, excluding the B4 base pins, is 105 mm tall.
References: Data-sheet & 1040.



Pin Connections
B4
1
2
3
4
a
k
nc
nc



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
120
75
Thanks to Frank Philipse for supplying the above PDF datasheet.
