AC/SGVMSensibly equivalent¶ to:See also:
|
|
|
|

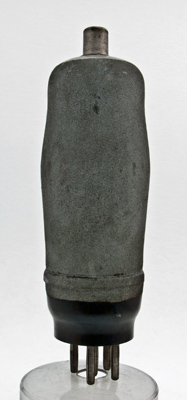

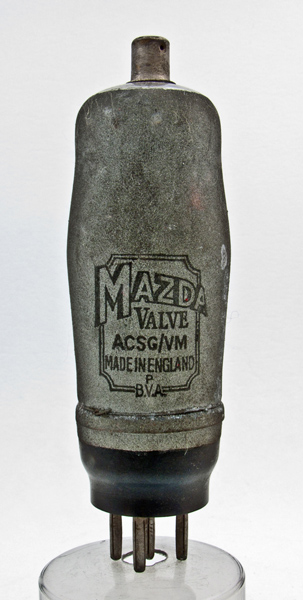

The AC/SGVM is a variable μ RF tetrode. Initially when released it had a balloon envelope and plastic top cap with screw connection see DC2/SGVM. This exhibit is later and has the top hat top cap and shouldered envelope. It is also fully screened with external metallisation.The Mazda Valve Manual from 1935 describes the AC/SGVM (and AC/S1VM) as available for replacement purposes. The pentode had taken over from the screened grid valve in their current designs. Their text reads:-These valves are of the Variable-mu type, solely for use in receivers where volume is controlled by potentiometer adjustment of grid bias. Their characteristics are such that, with increase of negative control-grid voltage, anode current and mutual conductance characteristics follow a shape which minimises cross modulation and amplitude distortion.The reverse is plain zinc paint.The classic envelope is 39 mm in diameter, and excluding the B5 base pins is 110 mm tall.References: Data-sheet, 4022, 1040 & 1043. Type AC/SGVM was first introduced in 1932. See also 1932 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | tc | g2 | g1 | h | h | k | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm |
| 4.0 | 1.0 | 200 | 60 | -2 | 5.0 | 0.9 | 0.7M | 2.0 |
|
PDF scanned from an original document held by the museum |
Updated July 03, 2022.
|
|
