CV4097

Sensibly equivalent to:
S2P20 VX6137
See also:
Ediswan S2P20 Advert

Extras ▼



The CV4097 is a special quality RF beam tetrode for battery equipment and operating at up to 100 MHz.
The filament has two sections an in series consume 230 mA at 5 Volts. The anode dissipation is five Watts. and typically the valve will generate 2.4 Watts of RF output.

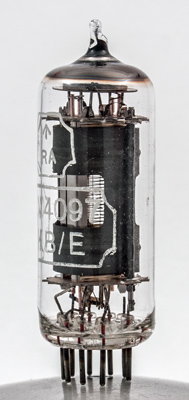

The KB/E identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the E identifies the maker as Thorn-AEI, Brimsdown.

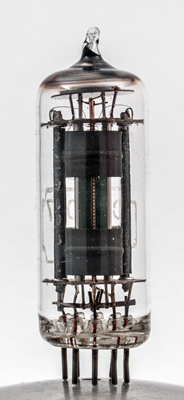

The anode is blackened and the beam plate are bright. Inside the grids and filaments can be seen.
Looking along the grids through a gap in the side of the anode.
The thin glass tube envelope is 20 mm in diameter, and excluding the B9A base pins is 58 mm tall.
Reference: Data-sheet. Type CV4097 was first introduced in 1955. See also 1955 adverts.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a
nc
bp
f(-)
f(+)
g2
g1
bp
fct



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
2.5
0.460
150
150
-
28.0
2.0
4.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 02, 2024.
