CV2241

Sensibly equivalent to:
5642 DY70 SN956B VX6090 VX7047 VX7056

Extras ▼

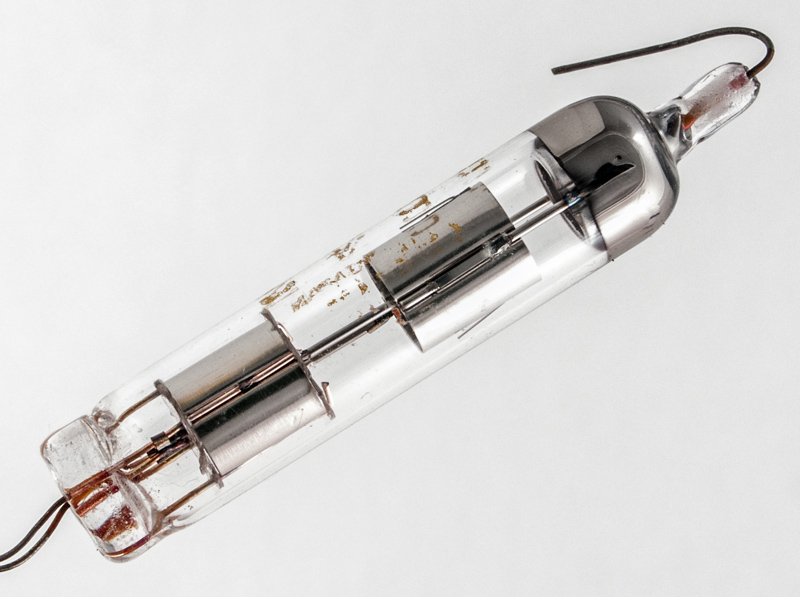

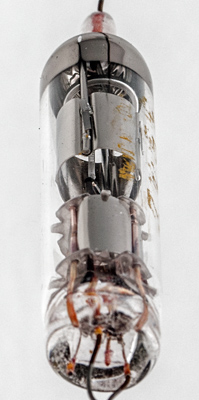

The CV2241 is an EHT rectifier diode designed specifically for use in oscilloscope EHT supplies and as a measuring instrument component it is a special quality device.
The filament is a close wound helix and is oxide coated.
The thin glass tube envelope is 10 mm in diameter, and excluding the lead out wires is 49 mm tall.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
1.25
0.2
3,600
0.25
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 26, 2014.
shape:thin.glass.tube construction:all.glass type:rectifier.hw age:1950.1960 base: pin:
